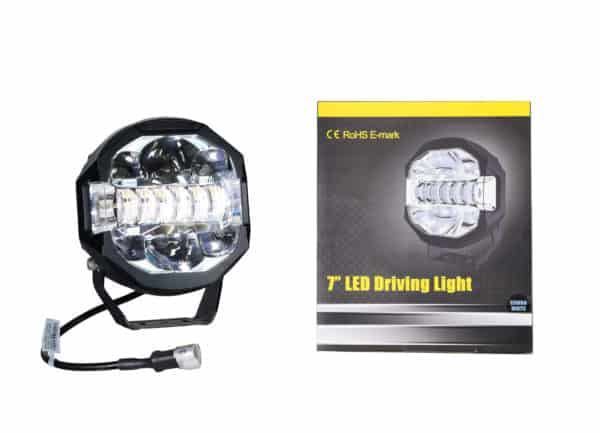

Packaging Includes:

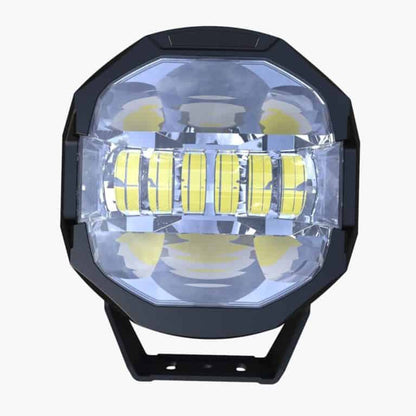

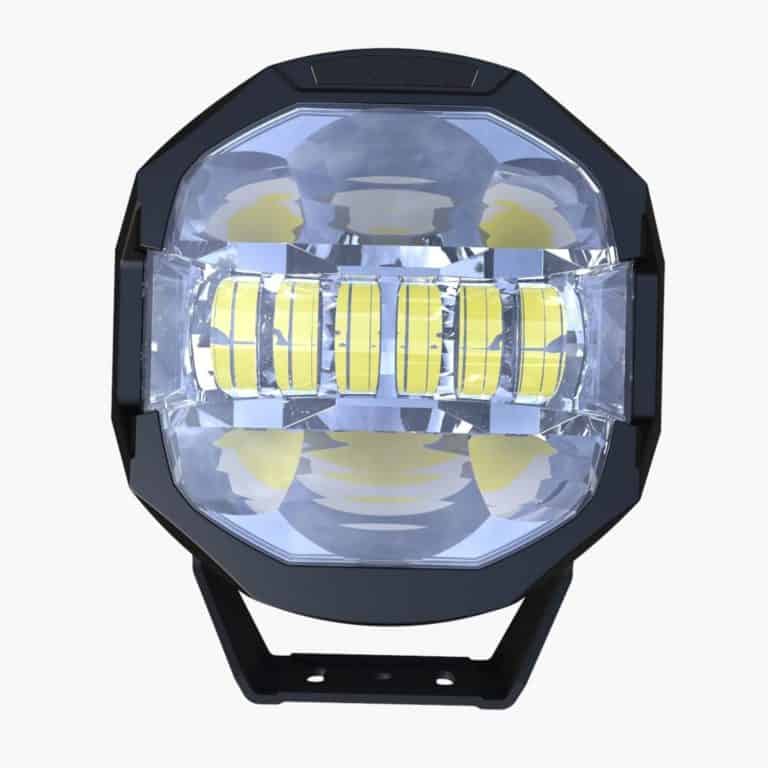

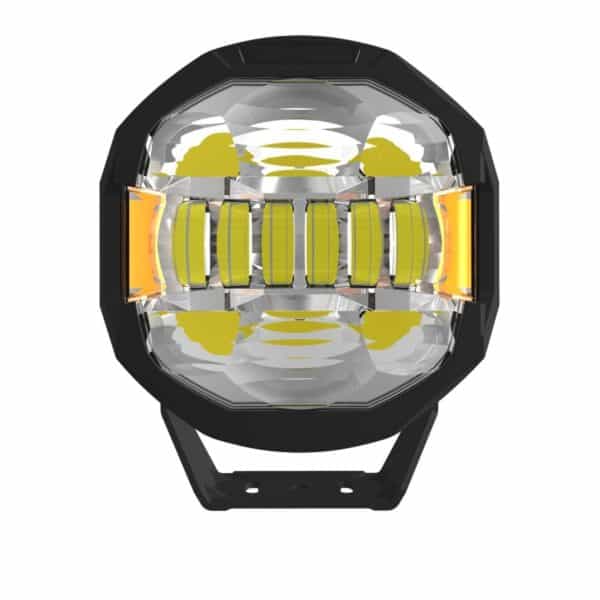

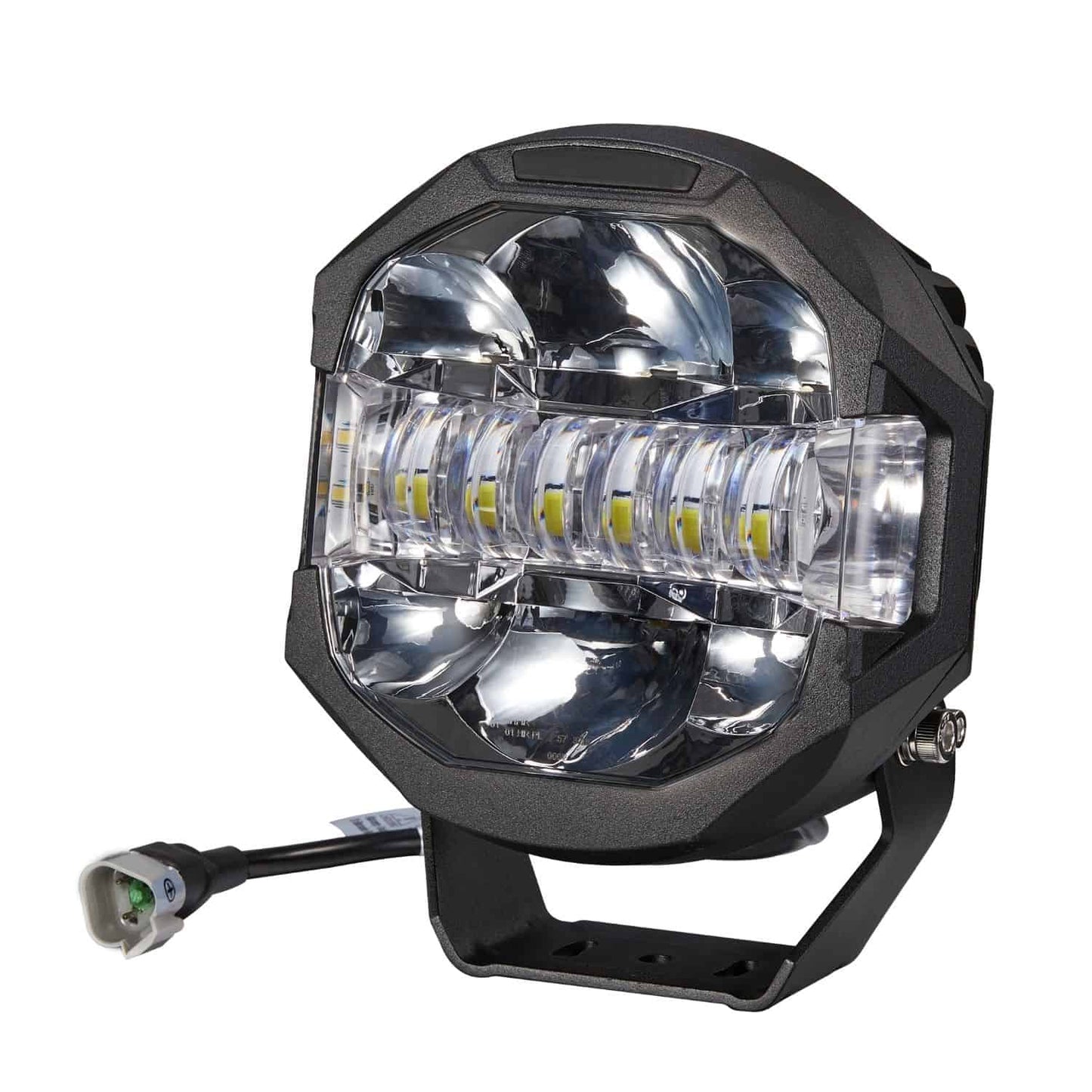

2 x Explora LED Spotlights with combo beam
1 x Harness
Mounting Hardware
Mounting Instructions
Class Leading Performance
8100 Lumens ensures that you can explore to your hearts content with optimal performance

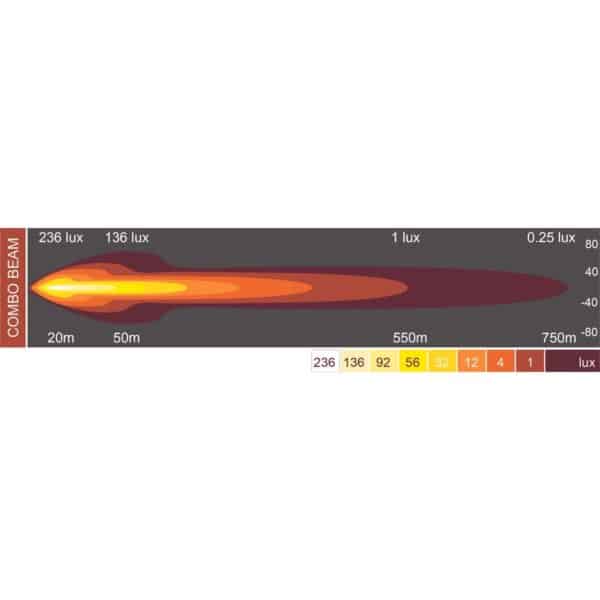

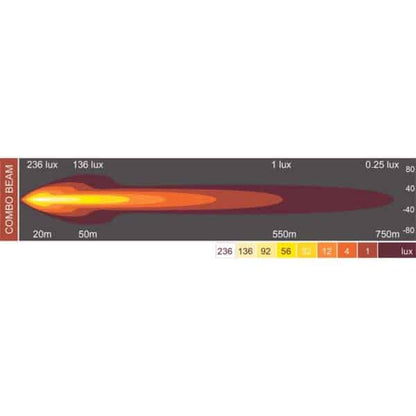

Combo beam produces 1 Lux at 550m to ensure you have maximum visibility
Color temperature of 5500 Kelvin producing daylight lighting conditions and reducing eye fatigue under night driving conditions
Popular 7″ size to ensure the best size to performance ratio
Built To Endure
Superior anti-shock, anti-vibration, extreme waterproof to ensure maximum durability
Advanced Heat Dissipation Solution to maximise the operational lifespan
Virtually unbreakable PC lens durable to withstand off-road conditions
Rugged Diecast Aluminum Housing
CISPR 25 CLASS 3 rating approved and ensure do not interfere with EMC functionality
Emark approvals
Technical Data
Warranty: 2 year LED Warranty
Color of the lamp body: Black
Reflector/Lens: Spot
Connector: Deutsch Connector 3-pin
Mounting bolt: 1pc M8 and 2pcs M6
Lifespan: 50,000 hrs +
Material of lamp body
Bracket: Stainless Steel
front cover, rear housing: Aluminium alloy ADC12
front lens, reflector: PC

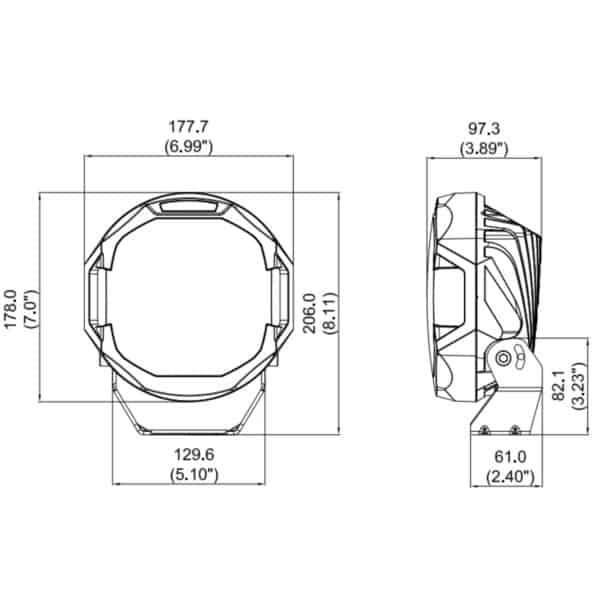

Product Info
Height: 178mm（7ˮ）
Width: 178mm（7ˮ）
Depth: 97mm（3.89ˮ）
Net Weight (kg）: 2.5Kg
Color temperature: 5500K
Light transmittance: PC lens: Light transmittance >93%
Driving efficiency: 0.8
Operating input voltage: 10～32V
IP Rating: IP68
Vibration: 15Grms24—2000Hz
Shock: 60G
Working temperature: -40~85℃
Storage temperature: -40~100℃
Electronic circuit: Built in Integrated
Electronic Parameters
LED Chip: Osram P9
Power: 100W
Lumens: 8100LM
(12V) Rated working current: 7.33A
(24V) Rated working current: 3.66A
