Hella Antares 9 LED Combo Set

Hella Antares 9 LED Daytime Running Light Combo set.

Includes : 2 x covers, wiring harness, 2 x adapters (H4 & HB3)

Hella Antares 9 LED Daytime Running Light with Plug & Play Harness
Illuminate the darkest roads with the HELLA Antares 9” LED Driving Lights—engineered for maximum visibility and durability.

Key Features:

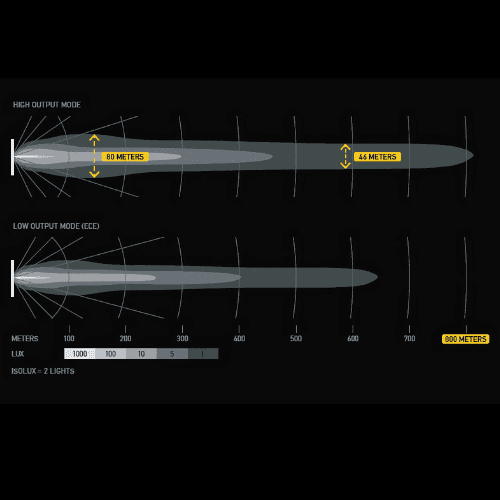

• Superior Illumination: Composite beam design delivers 1LUX at  800m+ range and 80m width.

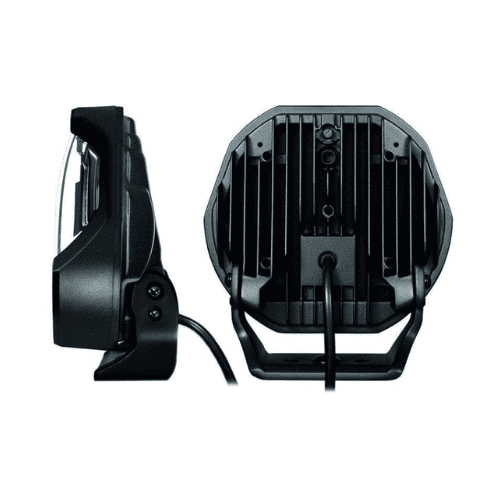

• Tough Construction: IP69K dust & waterproof, diecast aluminium housing, and UV-stable polycarbonate lens.

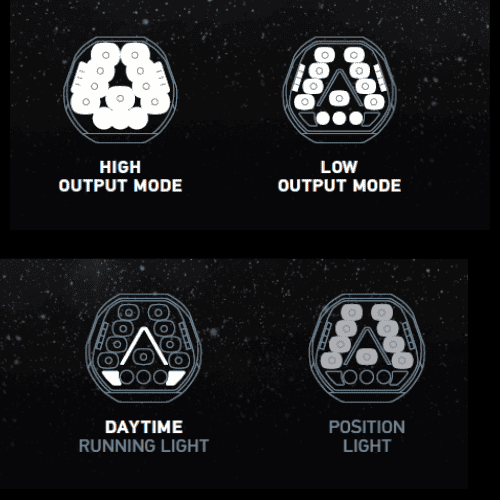

• Selectable Output Modes: Switch between high (215W) and low (120W) output for optimal comfort.

• Daytime Running Lights (DRL): Enhances visibility for safer driving in all conditions.

• Plug & Play Installation: Includes H4 & HB3 adapters for easy setup.

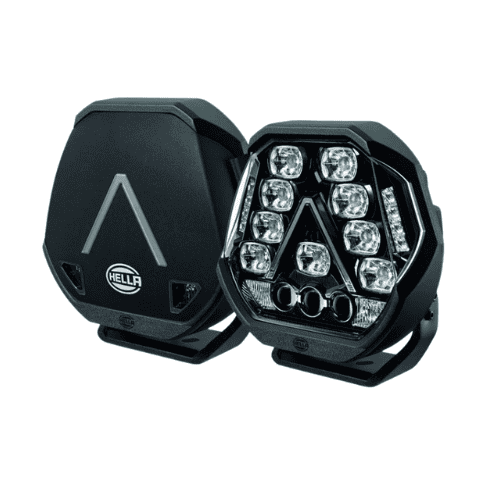

• Smart Cover Detection: Automatically switches off the main beam when covers are applied.

Technical Specifications per light:

• Output: 8,500 lumens (high), 5,700K colour temperature

• LED Configuration: 52 LEDs with projector spot beams & wide-beam clusters

• Power: High mode: 215W, Low mode: 120W

• Voltage: 10–30V DC (compatible with 12V & 24V systems)

• Protection: Overvoltage, polarity reversal, active thermal management

• Weight: 2.2kg per light

Kit Includes:

• 2x LED driving lights with mounting hardware

• 2x Protective covers

• 1x Wiring harness

• 2x Adapters (H4 & HB3)

• https://youtu.be/Q-KXhYNiKAo?t=701x Installation manual

https://youtu.be/Q-KXhYNiKAo
